S25C 36ppr Solid Shaft Encoder Incremental Side Cable

Product Categories

Optical Rotary Encoders [195]
High Resolution Rotary Encoder [92]
Miniature Rotary Encoder [86]
Solid Shaft Encoder [120]
Hollow Shaft Incremental Encoders [161]
Single Turn Absolute Encoder [70]
Hollow Shaft Absolute Encoder [50]
Heavy Duty Encoder [83]
Through Hole Encoder [96]
Flange Encoder [39]
Servo Motor Rotary Encoder [44]
Elevator Encoder [44]
Bearingless Encoder [46]
Rotary Encoder Module [16]

Shanghai Hengxiang Optical Electronic Co., Ltd.

Contact Now

S25C 36ppr Solid Shaft Encoder Incremental Side Cable

Name: S25C 36ppr Solid Shaft Encoder Incremental Side Cable
Brand: HENGXIANG
Price: 1 USD

Wholesale S25C 36ppr Solid Shaft Encoder Incremental Side Cable from china suppliers

Brand Name : HENGXIANG

Model Number : S25C

Certification : Certification

Place of Origin : Shanghai,China

MOQ : 1pcs encoder to start order

Price : negotiable

Payment Terms : D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Encoder type : Incremental encoder

External diameter : 25mm

Solid shaft diameter : 4mm(D shape)

Resolution : 50-2500 ppr

Output phase : Phase A,B,Z,A-,B-,Z-

Outlettype : Cable out from side;Cable out from back

Output mode : NPN&PNP;Voltage;Push-pull;TTL,HTL,RS422

Protection grade : IP50

Net weight : 60g (with package)

Contact Now

S25C 36ppr small encoder incremental encoder supplier resolution up to 2500p/r encoder

Quick Details

Model Number:: Incremental type

Type:: ROTARY ENCODER

Place of Origin:: Shanghai, China

Brand Name:: HENGXIANG

Usage:: Optical encoder

Theory:: Optical encoder

Output:: Other

Description:: S25C encoder

Brand:: HENGXIANG

Encoder type:: Incremental encoder

External diameter:: 25mm

Solid shaft diameter:: 4mm(D shape)

Resolution:: 36-2500 ppr

Output phase:: Phase A,B,Z,A-,B-,Z-

Outlettype:: Cable out from side;back

Output mode:: NPN&PNP;Voltage;Push-pull;Difference output(TTL,HTL,RS422)

Protection grade:: IP50

Net weight:: 60g (with package)

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Package for S25C

Port: SHANGHAI

Product Description

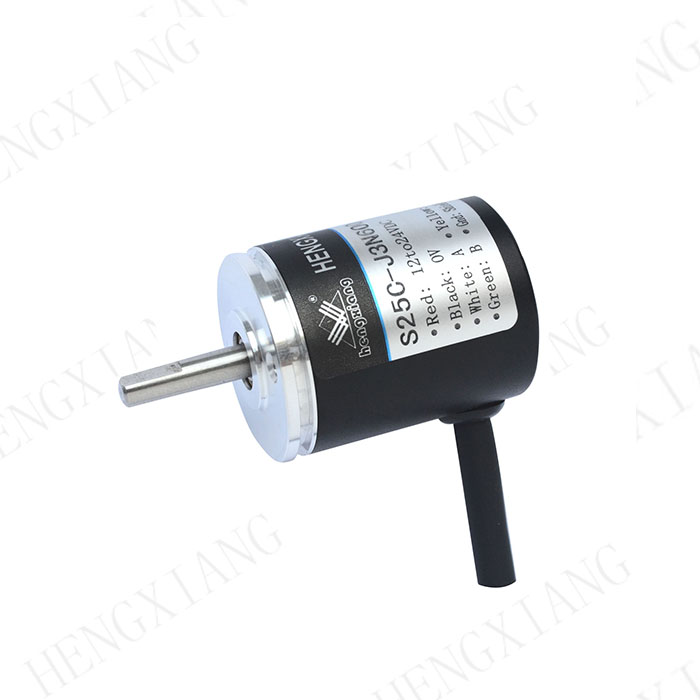

S25C 36ppr Solid Shaft Encoder Incremental Side Cable

Diameter 25mm shaft 4mm type incremental rotary encoder
Why choose "HENGXIANG" encpder?1.HENGXIANG brand--The trustworthy partner
2.CE approved--advantaged product quality;
3.Fast delivery--strong stock product ability;
4.Factory directly provide a competitive price;
5.One-stop service--for your efficient purchasing experience;
6.OEM design accepted--customized design, your own brand accepted.

Items	Basic parameters
External dimensions	External diameter: 25mm
	Thickness: 32mm
	Solid shaft diameter: 4mm(D shape)
Encoder type	Incremental encoder
Resolution	36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase	Phase A,B,Z,A-,B-,Z-
Supply voltage	DC5V; DC8-30V
Outlettype	Cable out from side
	Cable out from back
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Difference output(TTL,HTL)
Environmental temperature	Operating temperature: -20~+80° (Non icing)
	Storage temperature: -25~+85° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Consumption current	100mA Max
Allowable ripple	≤3%rms
Shaft Load	Radial: 10N; Axial:5N
GND	not connect to encoder
Slew Speed	≤5000rpm
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
Mark to Space ratio	45% to 55%
Top Resonse Frequency	100kHz(OC);200KHz(TTL);300KHzHTL)
Shell Material	Alumlnlum alloy
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material	Stainless steel
Vibration(endure)	Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually
Shock(endure)	49/m/s2,11ms three times for X,Y,Z direction individually
package	Carton box
Net weight	About 60g
Certification	CE

Product Usage

Packing&Shipping

Each single encoder is packed into a single safe carton with protecting bubble.
 Then all encoders will be put into a bigger carton to prepare shipment.
