3000RPM Incremental Hollow Shaft Rotary Encoder Push Pull For Machinary

Name: 3000RPM Incremental Hollow Shaft Rotary Encoder Push Pull For Machinary
Brand: HENGXIANG
Price: 1 USD

Wholesale 3000RPM Incremental Hollow Shaft Rotary Encoder Push Pull For Machinary from china suppliers

Brand Name : HENGXIANG

Model Number : K58

Certification : CE,ISO9001

Place of Origin : Shanghai,China

MOQ : 1Pcs

Price : Consult us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Product Name : Hollow shaft heavy duty encoder K58 photoelectric rotary encoder 7200ppr dc8-30v

Encoder type : Incremental encoder

External diameter : 58mm

Thickness : 24mm

Supply voltage : DC5V ; DC8-30V

Outlet type : Cable out from side

GND : not connect to encoder

Mark to Space ratio : 45% to 55%

Top REV : 3000RPM

Shaft Material : Stainless steel

Contact Now

1024ppr Encoder Ghh60-12g1024bmcp526 Rotary Encoder hollow shaft push pull for machinary

3000RPM Incremental Hollow Shaft Rotary Encoder Push Pull For Machinary

Product Description

Video of Encoder products

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.

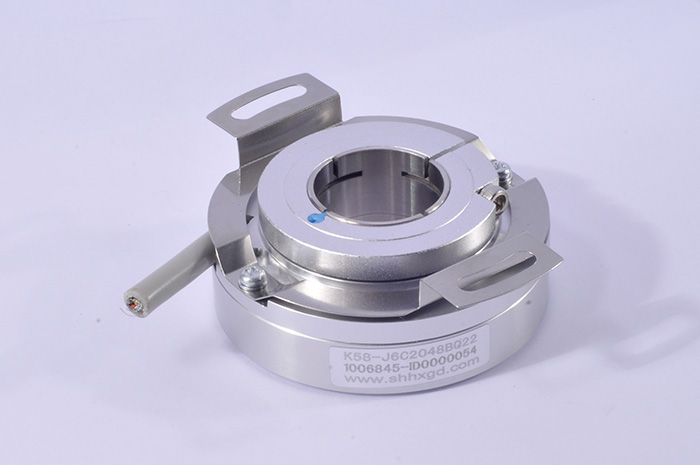

K58 encoder Product Description

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	58mm
Thickness	24mm
Installation dimension	R34.1mm(spring plate 58T64)
Hollow shaft type	clamping ring at prior or clamping ring at rear
Hollow shaft diameter	15mm,16mm,18mm;20mm;22mm
Resolution	1000;1024;1200;1250;1440;2000;2048;2500;4096;5000;
	7200;14400；28800
	1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
	2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;
	5000/4;5000/6;/5000/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8-30V
Outlet type	Cable out from side
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 9.8 x 10-3 N.m
Intertia moment	less than 6.5x 10-6kg.m2
Shaft load	Radial 50N; Axial 30N
Top REV	3000RPM
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°；storage:-25 ～+90°
Environmental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)	980m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel

Questions you may like to know before ordering

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Related K58 encoder model number for choosing

K58-J1V2000B22

K58-J2N5000BQ22

K58-J3F7200B20

K58-J4E14400BQ20

K58-J6C28800B19 DC5V

K58-J12C2500/8BQ19 DC5V

K58-J12E1000/8B18 DC12-24V

K58-J12E1024/4BQ18 DC8-30V

K58-J12C2048/6BQ15 DC5V
