In cremental optical encoder solid shaft 6mm voltage output DC8-30V S38 encoder
Our advantage
· Customers from about 200 countries
· IS09001:2015 Certification
· Trademark Registration certificate
· Over 18 years encoder production experience
· More than 20 years experienced engineers
· Professional working team
· High quality standard
· Quick Response time
· Utility Model Patent Certificate
· Own brand and unique brand
Specification
| ITEM |
PARAMTERS |
| Brand |
HENGXIANG |
| Output mode |
NPN&PNP |
| |
Voltage output |
| |
Push-pull output |
| |
Difference output(TTL,HTL,RS422) |
| Output phase |
Phase A,B,Z,A-,B-,Z- |
| Outlet type |
Cable out from side & back |
| Protection grade |
IP50 & IP65 |
| Cable length |
1000MM |
| Environmental temperature |
Operating:-20 ～+90°；storage:-25 ～+100° |
| Environmental humidity |
Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) |
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) |
49m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shaft Material |
Stainless steel |
| Shell Material |
die cast aluminum |
| Cable length |
1000mm(cable with shielding) |
| Certification |
CE |
Applications
· Petrochemical industry
· Pharmaceutical industry
· DC servo motor
· Stock driver
· PMDC geared motor
· Brushless dc motor
· Servo motor
· Drawing machine
· VFD
· Inverter
· Aviation and aerospace industry
· Architectural decoration industry
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
FAQ
· Q: What’s your MOQ?
· A: 1pcs
· Q: How to order your encoder?
· A: Contact us, or email us, we will reply you as soon as possible.
· Q: Are you a factory or a trading company?
· A: we are 100% factory with our brand.
· Q: What’s your brand?
· A: HENGXIANG
· Q: Can you product ship to our country?
· A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
· Q: How to get the latest price?
· A: Contact us and tell me the encoder model selection.
· Q: How to select a right encoder model?
· A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
· Q: Do you offer technical support?
· A: Yes, we have professional technician who can solve all your doubts.
· Q: Can you factory offer a sample?
· A: Yes, sample can be provided.
Product Tags:
|
|

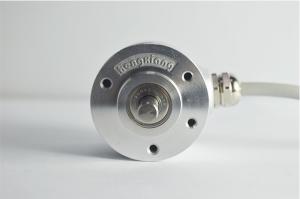

100mA Solid Shaft 6mm Incremental Optical Encoder Images
|
