TTL Rotary 3000RPM 80000ppr 82mm Through Shaft Encoder

Product Categories
Shanghai Hengxiang Optical Electronic Co., Ltd.
Contact Now

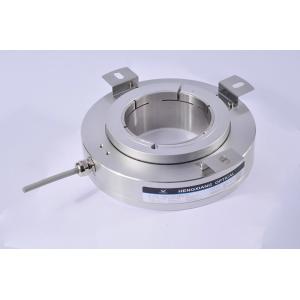

TTL Rotary 3000RPM 80000ppr 82mm Through Shaft Encoder

  • 1
  • 2

Place of Origin : Shanghai,China

Brand Name : HENGXIANG

Certification : CE,ISO9001

MOQ : 1pcs encoder to start order

Price : negotiable

Packaging Details : each 1 piece was packed into single carton box

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Payment Terms : D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc

Supply Ability : 100K pieces per year

External diameter : 158mm

Thickness : 43mm

Installation dimension : R85mm (spring plate 158T170)

Hollow shaft type : through hole (clamping ring at prior)

Hollow shaft diameter : 70mm, 75mm, 78mm; 80mm; 82mm

Resolution : 1024; 2048; 20000; 40000; 80000

Output phase : Phase A+, B+, Z+, A-, B-, Z-

Supply voltage : DC5V; DC8-30V

Consumption current : 100mA MAX

Top REV : 3000RPM

Contact Now

High resolution rotary encoder 80000ppr through hole 82mm TTL output K158 encoder

Principle of encoder

With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.

The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.

Replacement of Older Output Drivers

Application

Stepper motor

Servo motion controller

Gearbox

DC garage door motor

Brushless dc motor
Servo motor

Drawing machine

VFD

Inverter

Elevator

Printing machinery

Our Service

1. Quick response once received customer’s quotation query

2. Professional engineer team, to solve your problems at any time

3. Strictly inspection before shipment

4. Various encoder models to be selected

5. Short lead time

6. High quality standard

Parameter table

Brand HENGXIANG
Encoder type Incremental encoder
External diameter 158mm
Thickness 43mm
Installation dimension R85mm(spring plate 158T170)
Resolution 1024;2048;20000;40000;80000
Output phase Phase A+,B+,Z+,A-,B-,Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Output mode Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frequency 300KHZ
Insulation resistance 10MΩ
Certification CE
package Carton box
Net weight About 1800g (with package)

Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.

Production video

Please email us directly or contact online service right now to get the latest video, otherwise you could visit our YOUTUBE page.

Payment terms

1. T/T, western union, credit card, Paypal, etc.

2. 3-5 working days after payment received

3. Encoders will be shipped once ready


Product Tags:

82mm Through Shaft Encoder



80000ppr Through Shaft Encoder
