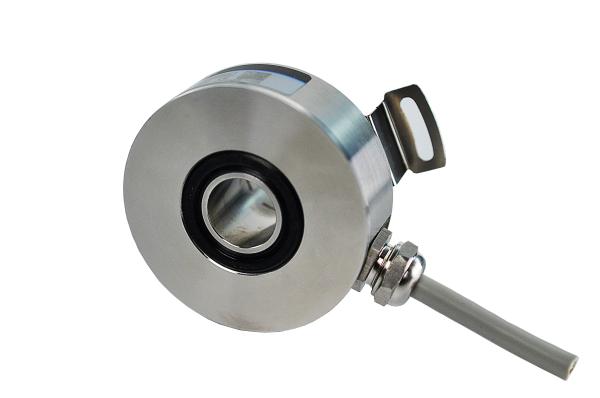

PGK50 hollow shaft Stainless Steel Ip67 Through Hole Encoder

Name: PGK50 hollow shaft Stainless Steel Ip67 Through Hole Encoder
Brand: HENGXIANG
Price: 1 USD

Wholesale PGK50 hollow shaft Stainless Steel Ip67 Through Hole Encoder from china suppliers

Brand Name : HENGXIANG

Model Number : PGK50

Certification : CE,ISO9001

Place of Origin : Shanghai, China

MOQ : 1Pcs

Price : Consult us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Encoder type : Incremental Type

External diameter : 50mm

Thickness : 27mm

Hollow shaft diameter : 10mm;12mm;14mm;15mm(optional)

Resolution : 1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000

Supply voltage : DC5V; DC8-30V

Consumption current : 100mA Max; 120mA Max

Top response frenquency : 100kHZ; 500kHZ; 600kHZ

GND : not connected to the encoder

Protection : IP67

Contact Now

PGK50 Stainless steel encoder 1024ppr Incremental rotarty encoder protection level IP67 servo motor encoder

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental Type
External diameter	50mm
Thickness	27mm
Hollow shaft type	Through shaft
Hollow shaft diameter	10mm;12mm;14mm;15mm(optional)
Resolution	1000; 1024; 1250; 2000; 2048; 2500; 4096; 5000; 10000
Output phase	1=A+B; 2=A+B; 3=A+B+Z; 4=A+A-+B+B-; 6=A+A-+B+B-+Z+Z-; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage	DC5V; DC8-30V
Outlet type	Radial cable
Output mode	F=Push-pull; C=TTL(DC5V)
Output mode	E=HTL(DC8-30V)
Consumption current	100mA Max; 120mA Max
Top response frenquency	100kHZ; 500kHZ; 600kHZ
GND	not connected to the encoder
Starting torque	Less than 9.8×10-3 N.m
Inertia moment	Less than 6.5×10-6 kg.m2
Environmental temperature	Operating: -40~+90℃(repeatable winding cable: -10℃); Storage: -45~+95℃
Enviromental humidity	Operating and storage: 50~85%RH(noncondensing)
Protection	IP67
Shell	Stainless steel
Certification	CE
package	Carton box
Net weight	About 150g

PGK50 hollow shaft Stainless Steel Ip67 Through Hole Encoder

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.

More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
